problem with nec3540A


stavpal

Recommended Posts

Δημοσιεύτηκε

σόρρυ που είναι στα αγγλικά, αλλά το είχα ποστάρει και αλλού και βαριέμαι να το ξαναγράφω

I had the 1.04 official firmware and switched to 1.WB. Now my dvd+r's take lots of time to write. The dvd+r's I use are: MBIPG101R04 (tdk 8x)

I tried to write a dvd at 8x, it took 17minutes, Another dvd (only 3.8g) at 12x took 19minutes. It's just not right. UDMA is enabled (UDMA2 transfer mode)

Can anyone help?

έχει 3 εκδόσεις: original, fast & region-free. Εγώ έβαλα την fast. Γιατί όμως δεν γράφει πάνω από 4χ (λέει π.χ. "16χ" αλλά η ταχύτητά του κυμαίνεται εκεί 3.9-4χ ακόμα και σε καλό δισκάκι)


Admin
home


Windows XP 5.2
IA32
WinAspi: -
ahead WinASPI: File 'E:\Program Files\Nero\Nero 7\Core\Wnaspi32.dll': Ver=2.0.1.74, size=164112 bytes, created 11/2/2004 1:54:32 PM

NT-SPTI used
Nero Version: 7.0.0.0
Recorder: <_NEC DVD_RW ND-3540A> Version: 1.WB - HA 1 TA 5 - 7.0.0.0
Adapter driver: <IDE> HA 1
Drive buffer : 2048kB
Bus Type : default (0) -> ATAPI, detected: ?
CD-ROM: <_NEC DVD_RW ND-3540A >Version: 1.WB - HA 1 TA 5 - 7.0.0.0
Adapter driver: <IDE> HA 1

=== Scsi-Device-Map ===
DiskPeripheral : WDC WD3200JB-00KFA0 atapi Port 0 ID 0 DMA: On
CdRomPeripheral : TSSTcorp DVD-ROM TS-H352A atapi Port 1 ID 0 DMA: On
CdRomPeripheral : _NEC DVD_RW ND-3540A atapi Port 1 ID 1 DMA: On
DiskPeripheral : ST3120814A 2AAA ultra Port 2 ID 1 DMA: Off
CdRomPeripheral : Daemon softdrive 4.0 dtscsi Port 3 ID 0 DMA: Off
CdRomPeripheral : Daemon softdrive no2 1.0 dtscsi Port 3 ID 1 DMA: Off

=== CDRom-Device-Map ===
TSSTcorp DVD-ROM TS-H352A J: CDRom0
_NEC DVD_RW ND-3540A K: CDRom5
Daemon softdrive L: CDRom2
Daemon softdrive no2 M: CDRom3
=======================

AutoRun : 1
Excluded drive IDs:
WriteBufferSize: 74448896 (0) Byte
ShowDrvBufStat : 0
BUFE : 0
Physical memory : 511MB (523740kB)
Free physical memory: 78MB (80108kB)
Memory in use : 84 %
Uncached PFiles: 0x0
Use Inquiry : 1
Global Bus Type: default (0)
Check supported media : Disabled (0)

17.10.2006
ISO compilation
11:27:25 PM #1 Text 0 File Isodoc.cpp, Line 6410
Iso document burn settings
------------------------------------------
Determine maximum speed : FALSE
Simulate : FALSE
Write : TRUE
Finalize CD : TRUE
Multisession : FALSE
Burning mode : DAO
Mode : 1
ISO Level : 2 (Max. of 31 chars)
Character set : ISO 9660
Joliet : TRUE
Allow pathdepth more than 8 directories : TRUE
Allow more than 255 characters in path : TRUE
Write ISO9660 ;1 file extensions : FALSE

11:27:25 PM #2 Text 0 File ThreadedTransfer.cpp, Line 525
ReadBuffer-Pipe got 262144KB of Memory

11:27:25 PM #3 Text 0 File Reader.cpp, Line 124
Reader running

11:27:25 PM #4 Text 0 File Writer.cpp, Line 113
Writer K: _NEC DVD_RW ND-3540A running

11:27:25 PM #5 ISO9660GEN -11 File Geniso.cpp, Line 3304
First writeable address = 0 (0x00000000)

11:27:26 PM #6 Text 0 File Burncd.cpp, Line 3301
Turn on Disc-At-Once, using DVD media

11:27:26 PM #7 Text 0 File DlgWaitCD.cpp, Line 277
Last possible write address on media: 2295103 (510:01.28, 4482MB)
Last address to be written: 2253359 (500:44.59, 4401MB)

11:27:26 PM #8 Text 0 File DlgWaitCD.cpp, Line 289
Write in overburning mode: NO (enabled: CD)

11:27:26 PM #9 Text 0 File DlgWaitCD.cpp, Line 2568
Recorder: _NEC DVD_RW ND-3540A, Media type: DVD+R

11:27:26 PM #10 Text 0 File DlgWaitCD.cpp, Line 456
>>> Protocol of DlgWaitCD activities: <<<
=========================================

11:27:26 PM #11 Text 0 File ThreadedTransferInterface.cpp, Line 846
Setup items (after recorder preparation)
0: TRM_DATA_MODE1 ()
2 indices, index0 (150) not provided
original disc pos #0 + 2253360 (2253360) = #2253360/500:44.60
relocatable, disc pos for caching/writing not required/ required, no patch infos
-> TRM_DATA_MODE1, 2048, config 0, wanted index0 0 blocks, length 2253360 blocks [K: _NEC DVD_RW ND-3540A]
--------------------------------------------------------------

11:27:26 PM #12 Text 0 File ThreadedTransferInterface.cpp, Line 1058
Prepare recorder [K: _NEC DVD_RW ND-3540A] for write in CUE-sheet-DAO
DAO infos:
==========
MCN: ""
TOCType: 0x00; Session Closed, disc fixated
Tracks 1 to 1:
1: TRM_DATA_MODE1, 2048/0x00, FilePos 0 0 4614881280, ISRC ""
DAO layout:
===========
__Start_|____Track_|_Idx_|_CtrlAdr_|_RecDep__________
0 | lead-in | 0 | 0x41 | 0x00
0 | 1 | 0 | 0x41 | 0x00
0 | 1 | 1 | 0x41 | 0x00
2253360 | lead-out | 1 | 0x41 | 0x00

11:27:34 PM #13 Text 0 File SCSIPassThrough.cpp, Line 56
Error on LockVolume: Access is denied.


11:27:34 PM #14 Text 0 File SCSIPassThrough.cpp, Line 104
SPTIDismountVolume - completed successfully for FSCTL_DISMOUNT_VOLUME

11:27:34 PM #15 Text 0 File Cdrdrv.cpp, Line 9571
SPTIDismountVolume not successfull

11:27:42 PM #16 Text 0 File SCSIPassThrough.cpp, Line 56
Error on LockVolume: Access is denied.


11:27:42 PM #17 Phase 24 File dlgbrnst.cpp, Line 1724
Caching of files started

11:27:42 PM #18 Text 0 File Burncd.cpp, Line 4129
Cache writing successful.

11:27:42 PM #19 Phase 25 File dlgbrnst.cpp, Line 1724
Caching of files completed

11:27:42 PM #20 Phase 36 File dlgbrnst.cpp, Line 1724
Burn process started at 16x (22,160 KB/s)

11:27:42 PM #21 Text 0 File ThreadedTransferInterface.cpp, Line 2669
Verifying disc position of item 0 (relocatable, disc pos, no patch infos, orig at #0): write at #0

11:27:42 PM #22 SPTI -1066 File SCSIPassThrough.cpp, Line 306
CdRom5: SCSIStatus(x02) WinError(0) NeroError(-1066)
Sense Key: 0x05 (KEY_ILLEGAL_REQUEST)
Sense Code: 0x24
Sense Qual: 0x00
CDB Data: 0xAD 00 00 00 00 00 00 00 08 04 00 00
Sense Area: 0x70 00 05 00 00 00 00 0A 00 00 00 00 24 00 00 C0 00 07
Buffer x05a26200: Len x804

11:27:42 PM #23 Text 0 File DVDR.cpp, Line 6468
Book Type counter: 500, Book Type selected in RAM, command version 4

11:27:42 PM #24 Text 0 File DVDR.cpp, Line 6468
Book Type counter: 500, Book Type selected in RAM, command version 4

11:27:42 PM #25 Text 0 File DVDR.cpp, Line 6468
Book Type counter: 500, Book Type selected in RAM, command version 4

11:27:42 PM #26 Text 0 File DVDR.cpp, Line 5505
Drive: _NEC DVD_RW ND-3540A
Book Type request [NEC]: DVD-ROM, write to RAM
select Book Type setting from RAM
Changing the Book Type was finished successfully, return code 0

11:27:42 PM #27 CDR -1207 File DVDR.cpp, Line 5211
Book Type automatically set to: DVD-ROM

11:27:42 PM #28 Text 0 File DVDPlusRW.cpp, Line 666
Start write address at LBA 0
DVD high compatibility mode: Yes

11:42:38 PM #29 Text 0 File WriterStatus.cpp, Line 116
<K: _NEC DVD_RW ND-3540A> start writing Lead-Out at LBA 2253360 (226230h), length 0 blocks

11:42:38 PM #30 Text 0 File ThreadedTransfer.cpp, Line 228
all writers idle, stopping conversion

11:43:08 PM #31 Text 0 File DVDR.cpp, Line 6468
Book Type counter: 500, Book Type selected in RAM, command version 4

11:43:08 PM #32 Text 0 File DVDR.cpp, Line 6468
Book Type counter: 500, Book Type selected in RAM, command version 4

11:43:08 PM #33 Text 0 File DVDR.cpp, Line 5505
Drive: _NEC DVD_RW ND-3540A
Book Type request [NEC]: DVD-ROM, write to RAM
select Book Type setting from RAM
Changing the Book Type was finished successfully, return code 0

11:43:08 PM #34 Phase 37 File dlgbrnst.cpp, Line 1724
Burn process completed successfully at 16x (22,160 KB/s)


Existing drivers:
File 'Drivers\InCDfs.SYS': Ver=5, 0, 0, 0, size=101504 bytes, created 8/30/2005 5:24:38 PM (InCD4 driver for win NT/2K/XP)

Registry Keys:
HKLM\Software\Microsoft\Windows NT\CurrentVersion\WinLogon\AllocateCDROMs : 0 (Security Option)

τελικά πήρα TY000 03 (16x) και έγραψα ένα με 16χ και ένα άλλο με 8χ



στο 16χ έπιασε max 13.κάτι x

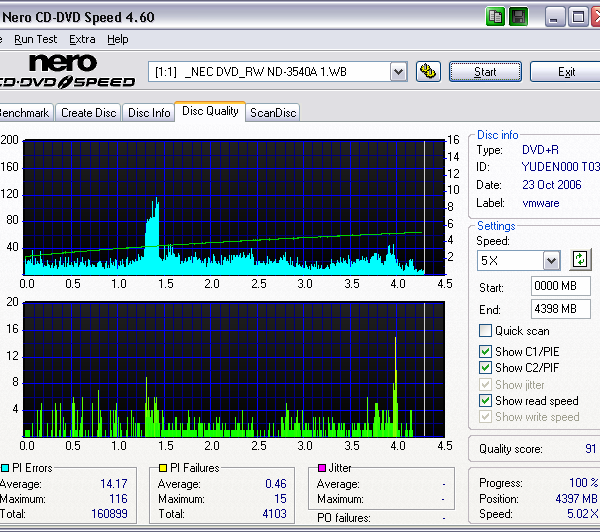

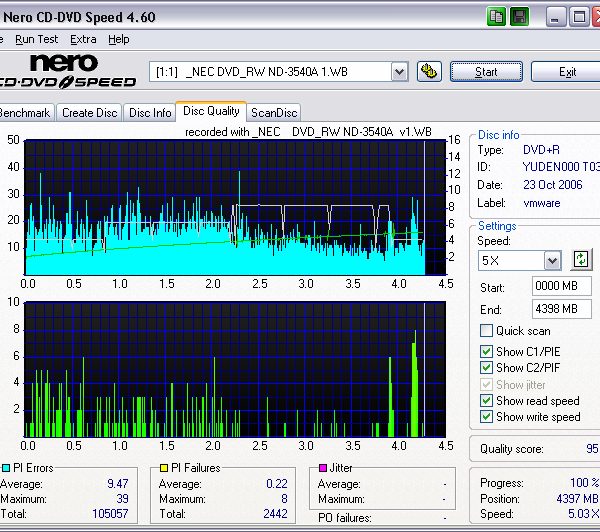

είναι καλά? (τα PIE & PIF)
