Έπεσε στα χέρια μου ένα ioDrive. Οπότε γιατί να χάσουμε την ευκαιρία να δούμε τι κάνει ένα PCIex4 SLC του 2011 στο σήμερα πλέον, 2014.


Η φωτό είναι δανεική, όταν το βγάλω από το PC θα βγάλω μερικές καλύτερες.

Όλα τα παρακάτω είναι με NTFS, 4K block size.


AS SSD




ATTO

Neither


Overlapped IO QD=2


Overlapped IO QD=8


HD Tune random


Crystaldisk

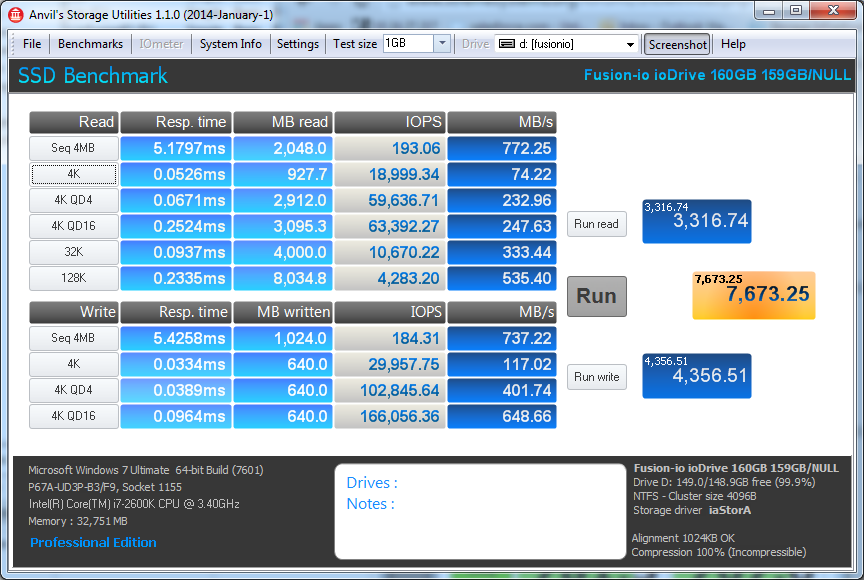

Anvil

attachment.php?attachmentid=64398&stc=1&d=1412389961

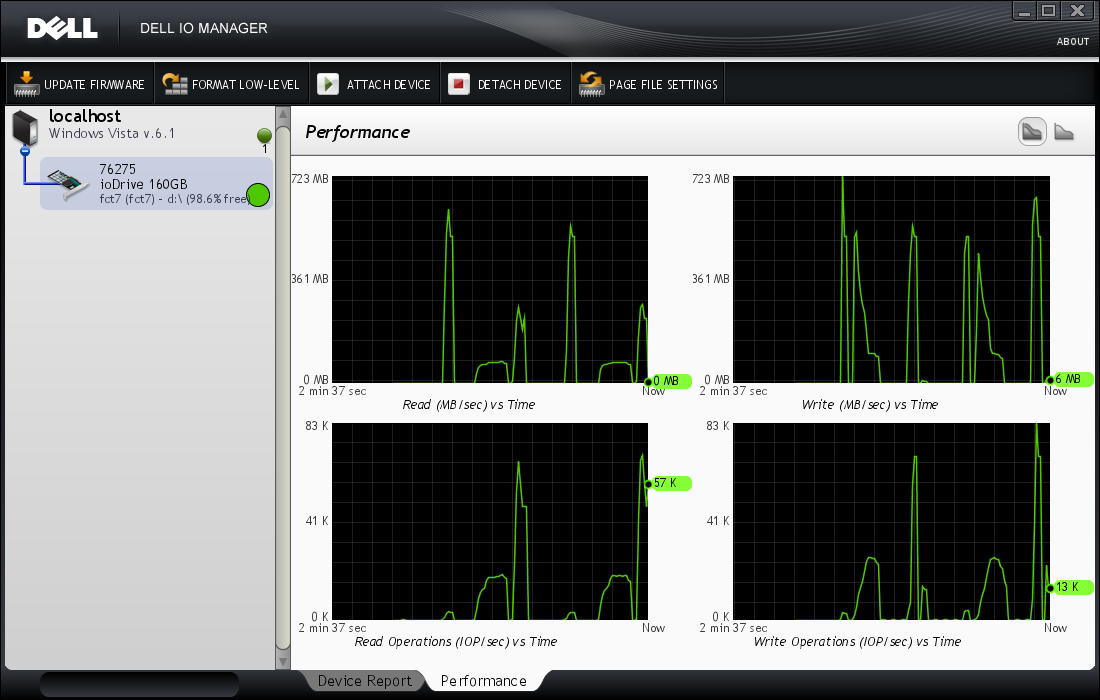

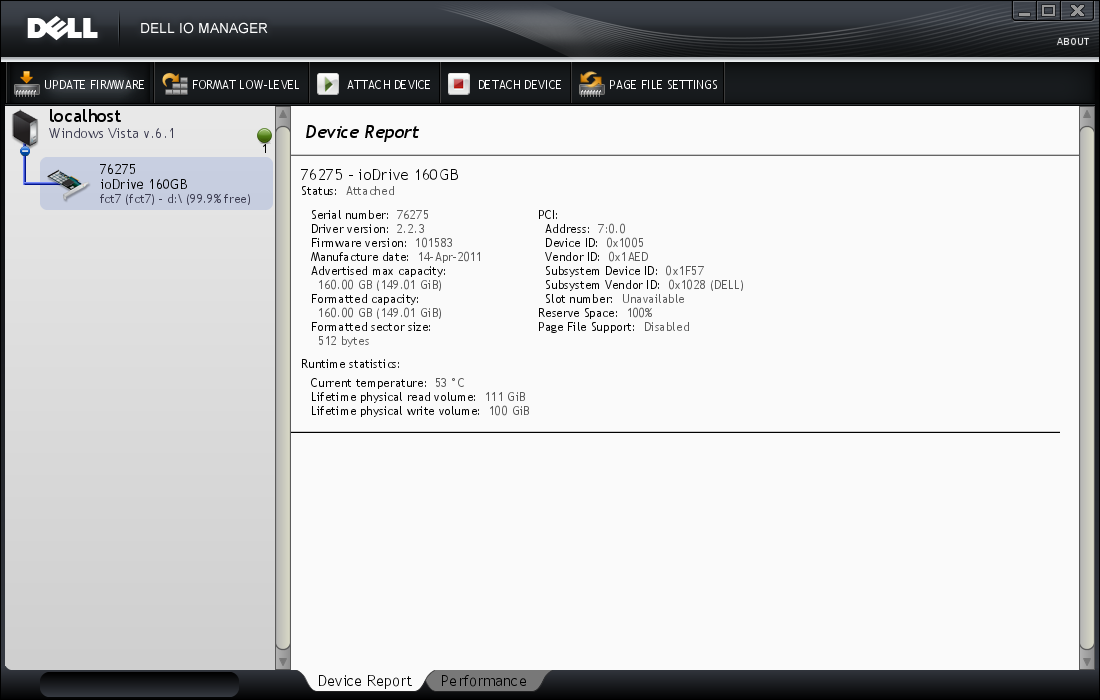

κανα δυο από το software (λίγο αρχαίο, βλέπει τα 7 σαν vista..)

attachment.php?attachmentid=64399&stc=1&d=1412390000

attachment.php?attachmentid=64400&stc=1&d=1412390011

και τέλος λίγο SQLIO για τους nerds :book:

[FONT="Courier New"]
-------------------------------------------------------------------------------
04/10/2014  0:46:09.51
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 30 secs from file D:\testfile.dat
	using 8KB sequential IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 93422.34
MBs/sec:   729.86
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 0
Max_Latency(ms): 227
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%: 100  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:53:21.12
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 30 secs to file D:\testfile.dat
	using 8KB sequential IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 87046.50
MBs/sec:   680.05
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 0
Max_Latency(ms): 84
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%: 99  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:46:45.13
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 30 secs from file D:\testfile.dat
	using 32KB sequential IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 24363.24
MBs/sec:   761.35
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 0
Max_Latency(ms): 225
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%: 99  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:52:45.18
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 30 secs to file D:\testfile.dat
	using 32KB sequential IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22478.94
MBs/sec:   702.46
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 0
Max_Latency(ms): 95
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%: 95  3  2  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:47:21.16
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 30 secs from file D:\testfile.dat
	using 64KB sequential IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 12358.24
MBs/sec:   772.39
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 1
Max_Latency(ms): 205
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%:  1 98  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:52:09.15
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 30 secs to file D:\testfile.dat
	using 64KB sequential IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 11370.74
MBs/sec:   710.67
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 1
Max_Latency(ms): 211
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%:  2 93  2  3  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:49:21.15
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 30 secs from file D:\testfile.dat
	using 8KB random IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 50148.13
MBs/sec:   391.78
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 0
Max_Latency(ms): 61
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%: 100  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:50:09.17
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 30 secs to file D:\testfile.dat
	using 8KB random IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 87681.05
MBs/sec:   685.00
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 0
Max_Latency(ms): 81
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%: 99  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:48:45.11
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 30 secs from file D:\testfile.dat
	using 32KB random IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 20565.71
MBs/sec:   642.67
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 0
Max_Latency(ms): 61
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%: 99  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:50:45.20
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 30 secs to file D:\testfile.dat
	using 32KB random IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 22142.86
MBs/sec:   691.96
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 0
Max_Latency(ms): 89
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%: 95  3  2  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:48:09.19
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads reading for 30 secs from file D:\testfile.dat
	using 64KB random IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 11266.80
MBs/sec:   704.17
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 1
Max_Latency(ms): 208
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%:  1 99  1  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
-------------------------------------------------------------------------------
04/10/2014  0:51:21.12
sqlio v1.5.SG
using system counter for latency timings, 3312822 counts per second
parameter file used: SQLIO_test_param.txt
	file D:\testfile.dat with 2 threads (0-1) using mask 0x0 (0)
2 threads writing for 30 secs to file D:\testfile.dat
	using 64KB random IOs
	enabling multiple I/Os per thread with 8 outstanding
using specified size: 5000 MB for file: D:\testfile.dat
initialization done
CUMULATIVE DATA:
throughput metrics:
IOs/sec: 11372.35
MBs/sec:   710.77
latency metrics:
Min_Latency(ms): 0
Avg_Latency(ms): 1
Max_Latency(ms): 156
histogram:
ms: 0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24+
%:  2 93  2  3  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0  0
*******************************************************************************
[/FONT]

:)
